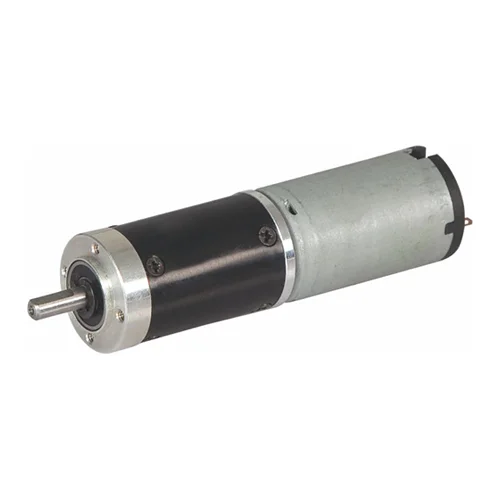

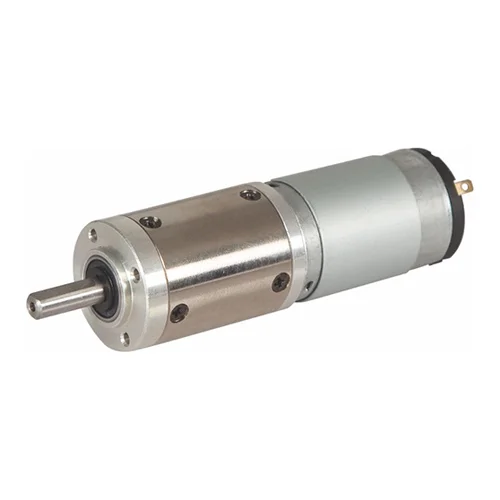

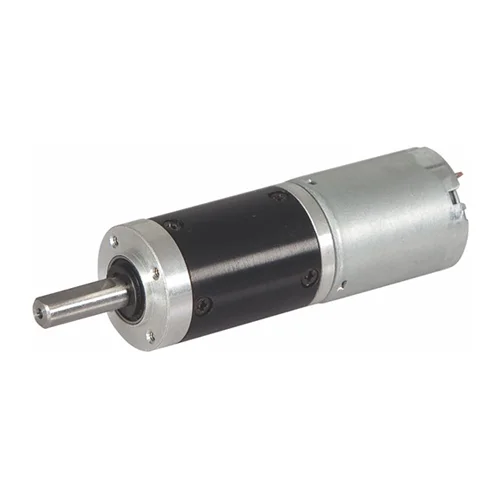

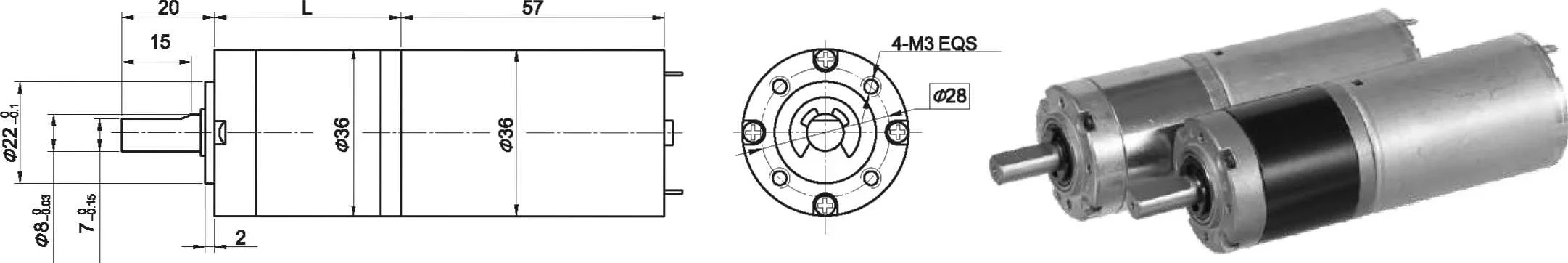

Dimensions
Motor Technical Data
TYPE | Rated voltage VDC | No-load Speed r/min | No-load current mA | Rated Speed r/min | Rated torque mN.m | Output Power W | Rated current A | Stall torque mN.m | Stall Current A |
36ZY57-2433 | 24 | 3300 | 90 | 2700 | 24.5 | 6 | 0.50 | 130 | 1.9 |
36ZY57-2442 | 24 | 4200 | 120 | 3600 | 19 | 7 | 0.52 | 125 | 2.8 |
Gear Motor Technical Data
Configure 36ZY57-2433 DC motor (36ZY57-2433 DC Motor)
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
Length(L)mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 |
No-load speed r/min | 892 | 635 | 236 | 174 | 122 | 65 | 46 | 33 | 24 | 18 | 15 |
Rated speed r/min | 730 | 519 | 193 | 142 | 100 | 53 | 38 | 27 | 19 | 15 | 12 |
Rated torque N.m | 0.081 | 0.11 | 0.28 | 0.38 | 0.54 | 0.91 | 1.2 | 1.8 | 2.5 | 3 | 3 |
Max. permissible load in a short time N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 |
Configure 36ZY57-2442 DC motor (36ZY57-2442 DC Motor)
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 | 306 | 354 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 |
No-load speed r/min | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 22 | 19 | 17 | 14 | 12 |
Rated speed r/min | 970 | 695 | 257 | 189 | 133 | 71 | 51 | 36 | 26 | 19 | 16 | 14 | 12 | 10 |
Rated torque N.m | 0.063 | 0.089 | 0.22 | 0.29 | 0.42 | 0.71 | 0.98 | 1.4 | 1.9 | 2.3 | 2.7 | 3 | 3 | 3 |
Max. permissible load in a short time N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 |

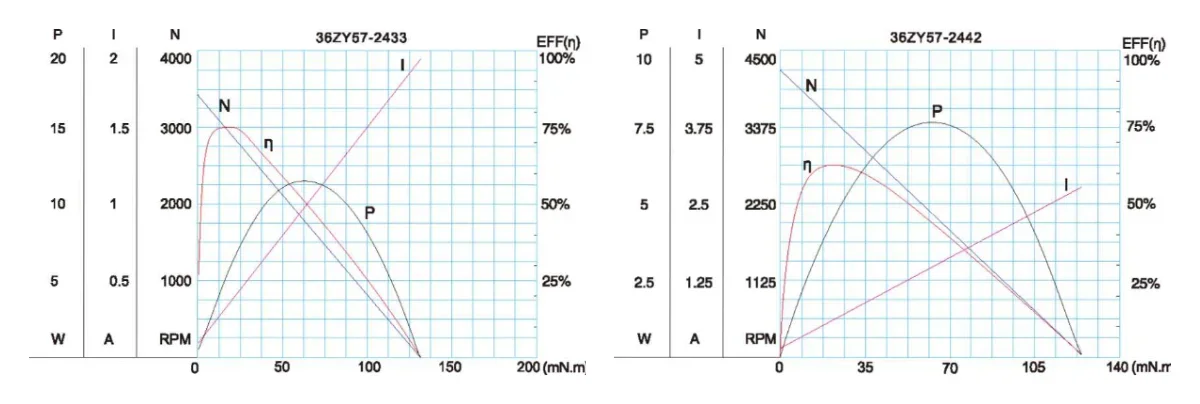

Motor Characteristic Figure
